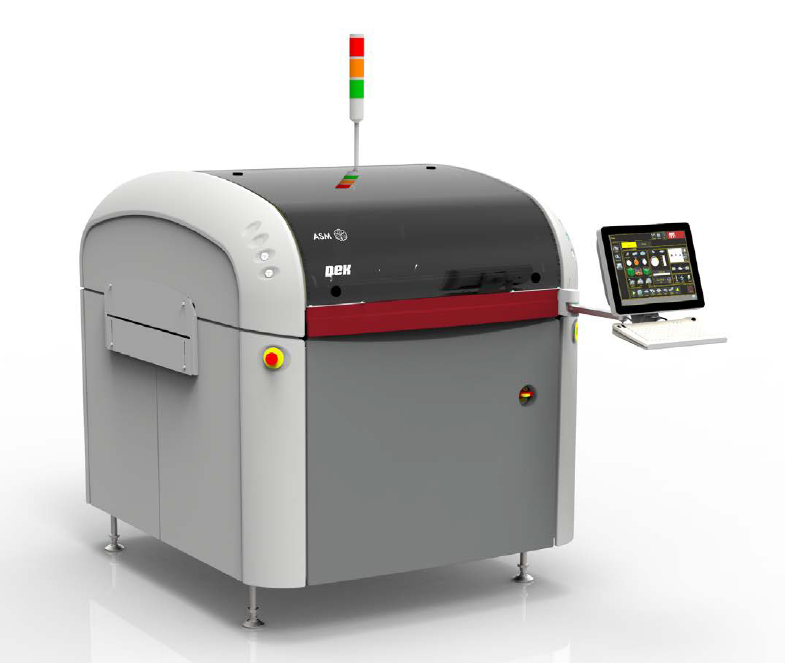

Machine type

 DEK Horizon 8

 Machine alignment capability

 > 2,0 Cpk @ ±12,5 µm, (±6 sigma)

 Wet print capability

 > 2,0 Cpk @ ±25 µm, (±6 sigma)

 Core cycle time

 10 secs

 Maximum print area

 508 mm (X) x 508 mm (Y)

 Machine control

Motion control using CAN BUS network

 Camera positioning

HawkEye® 750 digital camera, using IEEE 1394 interface. Multi channel. LED lighting.

FOV 11.3mm x 8.7mm (split between two views). Inspection window 26mm2

 Squeegee pressure mechanism

Software controlled, motorised with closed loop feedback

 Stencil positioning

 Substrate size (min.)

 50 mm (X) × 40,5 mm (Y)

 Substrate size (max.)

510mm (X) x 508.5mm (Y)

 Approximate dimensions

2060mm x 1500mm x 1570mm (81.1” x 59” x 61.8”)

 Standard configuration

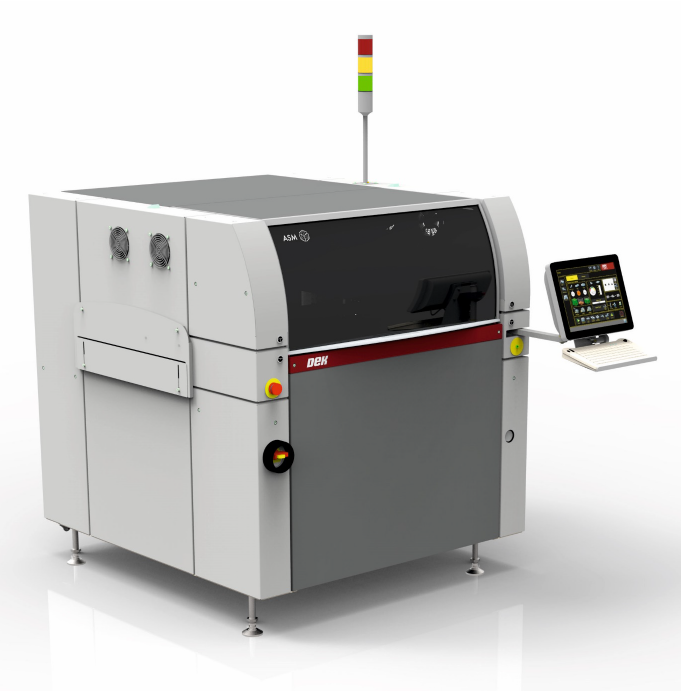

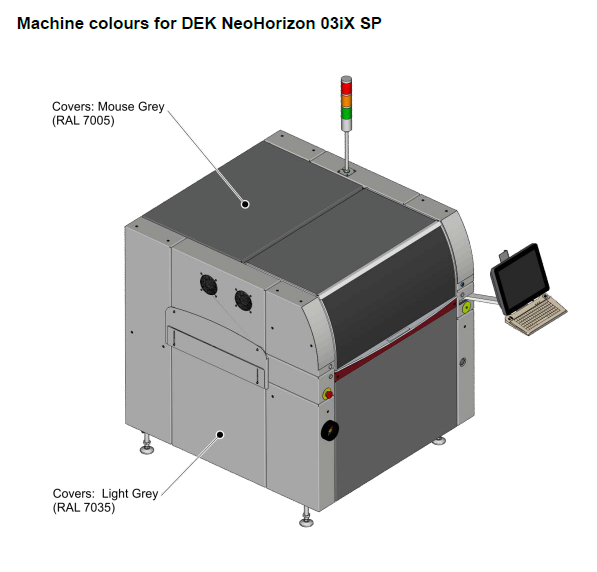

DEK NeoHorizon 03iX

DEK NeoHorizon 01iX

 Machine alignment capability

±12.5 µm @ > 2 Cmk (±6 Sigma)

±12.5 µm @ > 2 Cmk (±6 Sigma)

 Wet print capability (Cpk)**

±25 µm @ > 2.0 Cpk, (±6 Sigma), AVS-certified

±25 µm @ > 2.0 Cpk, (±6 Sigma), AVS-certified

 Standard cycle time

8 seconds + process

6.5 seconds + process

 Maximum printing surface

510 mm (X) × 508.5 mm (Y)

510 mm (X) × 508.5 mm (Y)

 User interface

Touchscreen, keyboard and trackball,

DEK Instinctiv V9 software

Touchscreen, keyboard and trackball,

DEK Instinctiv V9 software

 Camera

DEK HawkEye 750 digital camera

with 2-way LED illumination

DEK HawkEye 1700 digital camera

with 2-way LED illumination

 Squeegee adjustment

Motorized with squeegee pressure feedback

Motorized with squeegee pressure feedback

 Stencil loading

Semi-automatic

Automatic, incl. squeegee drip catcher

 Stencil alignment

Motorized (actuators); aligned on

X- and Y-axis and rotation

Motorized (actuators); aligned on

X- and Y-axis and rotation

 DEK ProFlow

Optional

Optional

 Understencil cleaning

DEK IUSC 300 mm/400 mm/520 mm

DEK Cyclone 300 mm/400 mm/500 mm

 Technical documentation

Printed documents: User manual, installation instructions, circuit diagrams.

Technical instructions and videos that explain all operating steps are preinstalled.

 Compressed air supply

 5-8 bar at ~5 litres/minute

 Power supply

 100 Volts to 240 Volts ±10 %. Single phase 50/60 Hz

 Weight Approx.

 690 kg depending on selected options

 * The machine and repeat accuracy qualification will be conducted using production-typical process variables. Machine dimensions in millimeters

 ** Wet print capability (Cpk) for each printing system (DEK NeoHorizon) standardized with external measuring system AVS.

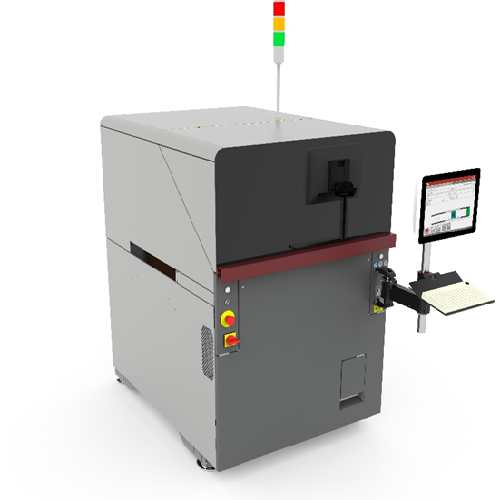

 Machine type

 DEK TQ

 Machine alignment capability

 > 2,0 Cmk @ ±12,5 µm, (±6 sigma)

 Wet print capability

 > 2,0 Cpk @ ±17,5 µm, (±6 sigma)

 Core cycle time

 5 secs

 Maximum print area

 400 mm (X) × 400 mm (Y) (single-stage mode)

 Machine control

 NuMotion control System

 Camera positioning

 Linear motors and high-precision encoders

 Squeegee pressure mechanism

 Software-controlled, motorised with closed-loop feedback

 Stencil positioning

 Substrate size (min.)

 50 mm (X) × 40,5 mm (Y)

 Substrate size (max.)

 250 mm (X) × 400 mm (Y) (3-stage mode)

400 mm (X) × 400 mm (Y) (single-stage mode)

 400 mm (X) × 400 mm (Y) (3-stage with optional transport extensions)

 Approximate dimensions

 1,300 mm (L) × 1,000 mm (W) × 1,600 mm (H)
